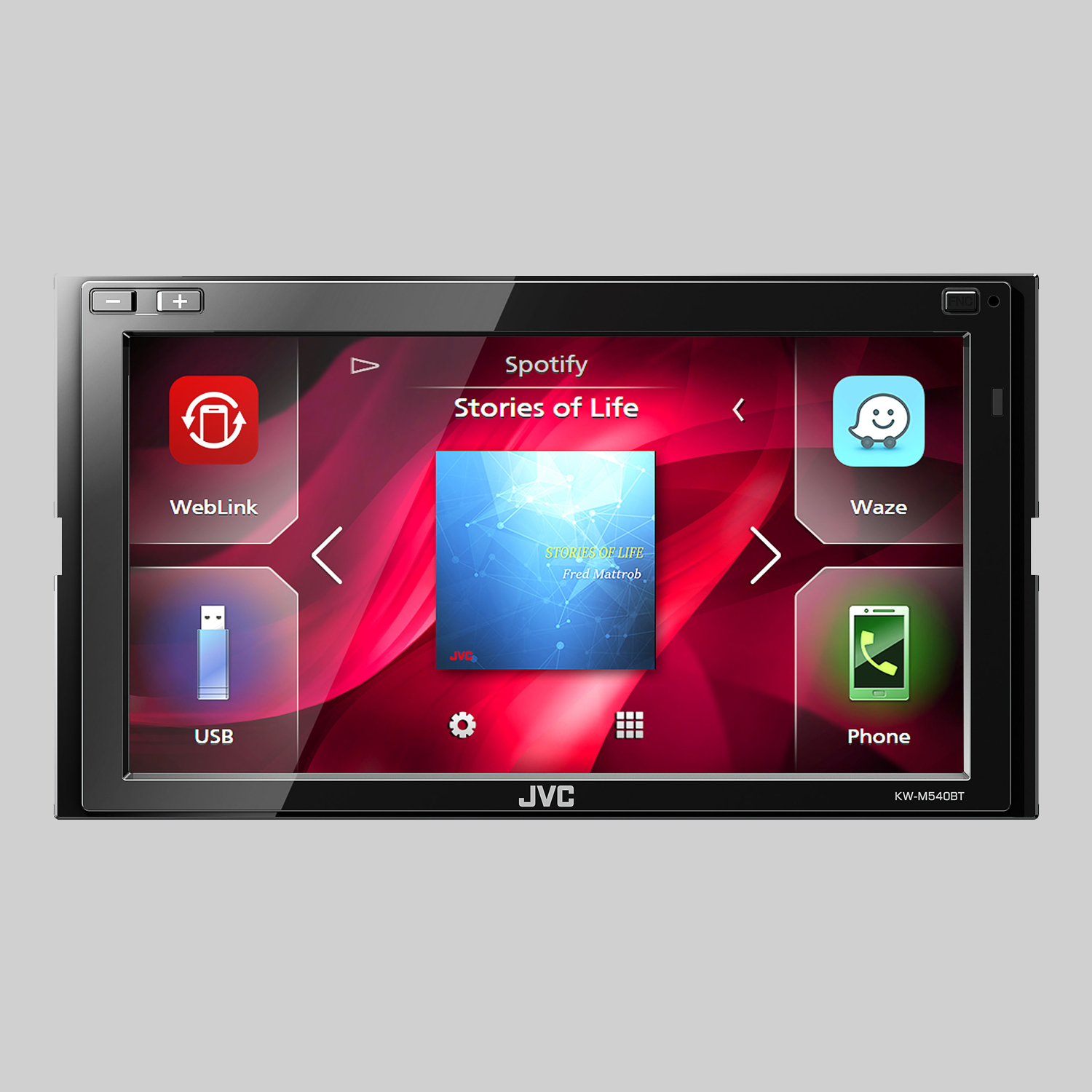

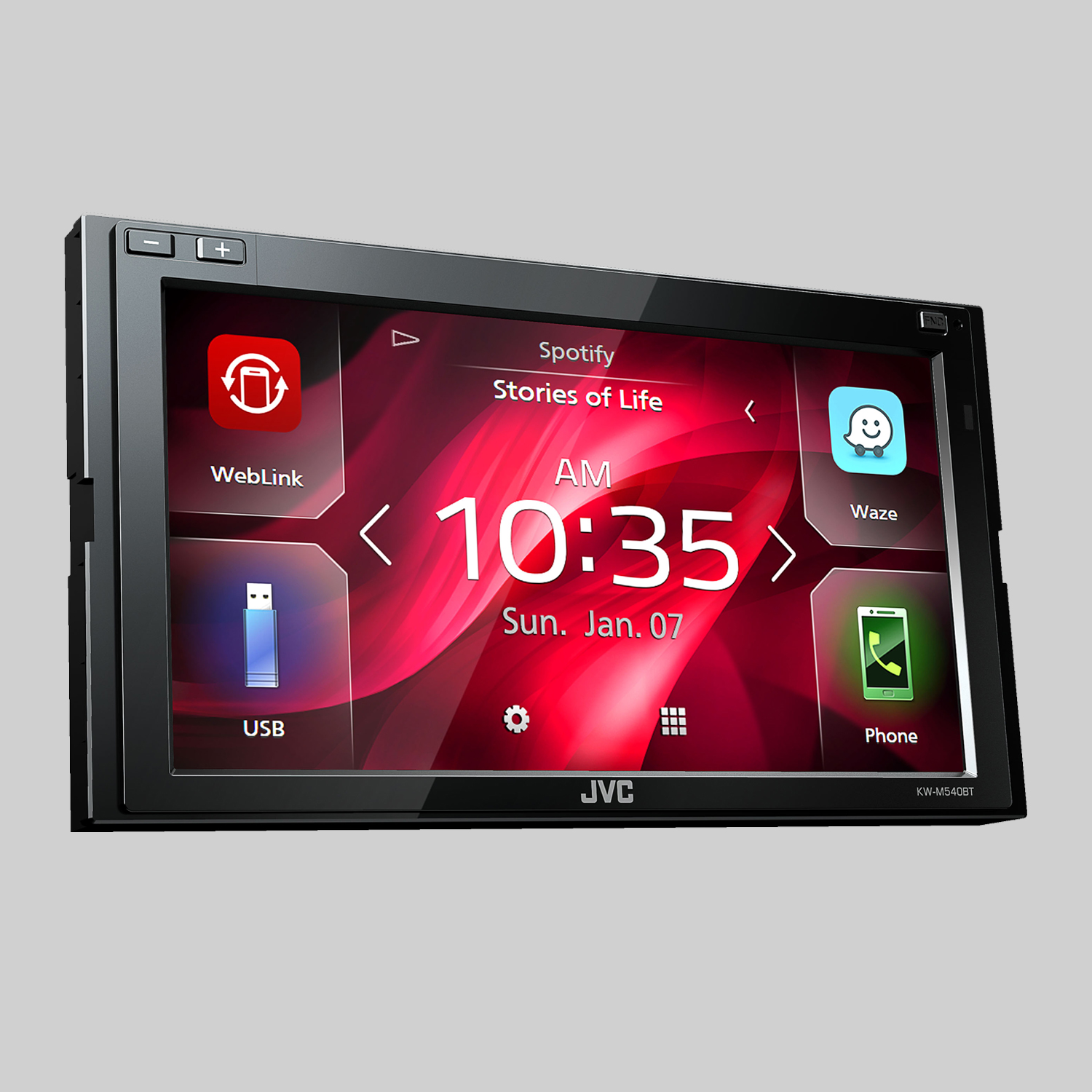

JVC M540BT
NZ$ 439.99 NZD
Technical Specifications
KW-M540BT
Monitor
Screen Size
6.8″ Wide VGA
Touch Panel
Clear Resistive
Customisable GUI
Yes
Key Illumination Color
White
Dimmer
Yes
Multilingual Display
Yes[2]
Wallpaper Capture
Yes
Media Playback
MP3 Compatible with Tag
USB
WMA Compatible with Tag
USB
WAV Compatible with Tag
USB
AAC Compatible with Tag
USB
FLAC Compatible with Tag
USB ( Up to 192kHz/24bit )
H.264 Compatible
USB
WMV Compatible
USB
MPEG 1/2 Compatible
USB
MPEG 4 Compatible
USB
AVI/MKV Compatible
USB
JPEG File Playback
USB
PNG File Playback
USB
BMP File Playback
USB
Bluetooth Control
Built-in Bluetooth[1]
Yes (Version 3.0, Wired-Mic included)
Hands Free Call
Yes (HFP1.6 Wideband Speech)
2 Phones Full-Time Connection
Yes
Audio Streaming & Control (A2DP, AVRCP)
Yes
Voice Dialing (voice recognition compatible mobile phone required)
Yes
Phone Book Access Profile (PBAP)
Yes
Alphabetical Search for Phone Book
Yes
Auto Pairing for iPhone/Android
Yes (iPhone only)
Android Control
Mirroring for Android
Yes (via USB)
Spotify Control
Yes (via Bluetooth(R))
iPod/iPhone Control
iPod/iPhone Music Playback
Yes (via USB or Bluetooth(R))
Spotify Control
Yes (via USB or Bluetooth(R))
USB
USB Port
x 2 (High speed)
Position
Rear
USB Power Supply
Yes (1.5A High Current Charging)
Drive Change Mode for Mass Storage Class (selectable from internal/external memory)
Yes
Radio Tuner
Radio Data System
Yes
Digital Processing Tuner
Yes
Preset Stations
24(FM:18ch, AM:6ch)
Automatic Presetting (Strong Station Sequential Memory)
Yes
FM
Frequency Range
87.5 – 108.0MHz
AM
Frequency Response
531 – 1,701kHz
Audio
Maximum Power Output (Front & Rear)
50W x 4
Full Bandwidth Power (Front & Rear)
22W x 4 (Full Bandwidth Power, at less than 1% THD)
MOS-FET Amplifier
Yes
EQ
Yes (13-Band Graphic EQ)
Preset EQ
Yes (8Preset + 4user)
Bass Boost
Yes
High-Pass Filter/Low-Pass Filter
Yes/Yes
3-Way X’over
Yes
Space Enhancement
Yes
Sound Response
Yes
Sound Lift
Yes
Volume Link EQ
Yes
Time Alignment
Yes
Inputs and Outputs
AV Input
mini jack
Video Out
RCA
Rear view camera Input
Yes
Line Output Terminals
3 Pairs (Front + Rear + Subwoofer)
Pre-output Level/Impedance
4.0V / 10k ohms
Subwoofer Output with Level/Frequency Control
Yes
General
Back Up Memory
Yes
Face Type
Viewing Angle Adjustment
Yes (0 – 20 degree, default : 0 degree) 4 steps
Steering Remote Control Ready
Yes
Learning Direct OEM Remote
Yes
Dimensions (W x H x D)
Installation Size
178 x 100 x 162 (mm)
